Real World Robotics · ETH Zürich · Team 5

Dexterous Manipulation with the ORCA Hand

Our work from the Real World Robotics lab course, exploring learning-based dexterous manipulation with the ORCA Hand through reinforcement learning in simulation, imitation learning, and our team's final project, human-in-the-loop RL to play Jenga.

Reinforcement learning Imitation learning Sim2Real Real-world RL

Simon Gerstenecker, Maxim Huber, Andres Neff, Valentin Simonis, Carlo Teufel Supervised by Chenyu Yang & Prof. Dr. Robert Katzschmann

Building the ORCA Hand

Hardware assembly

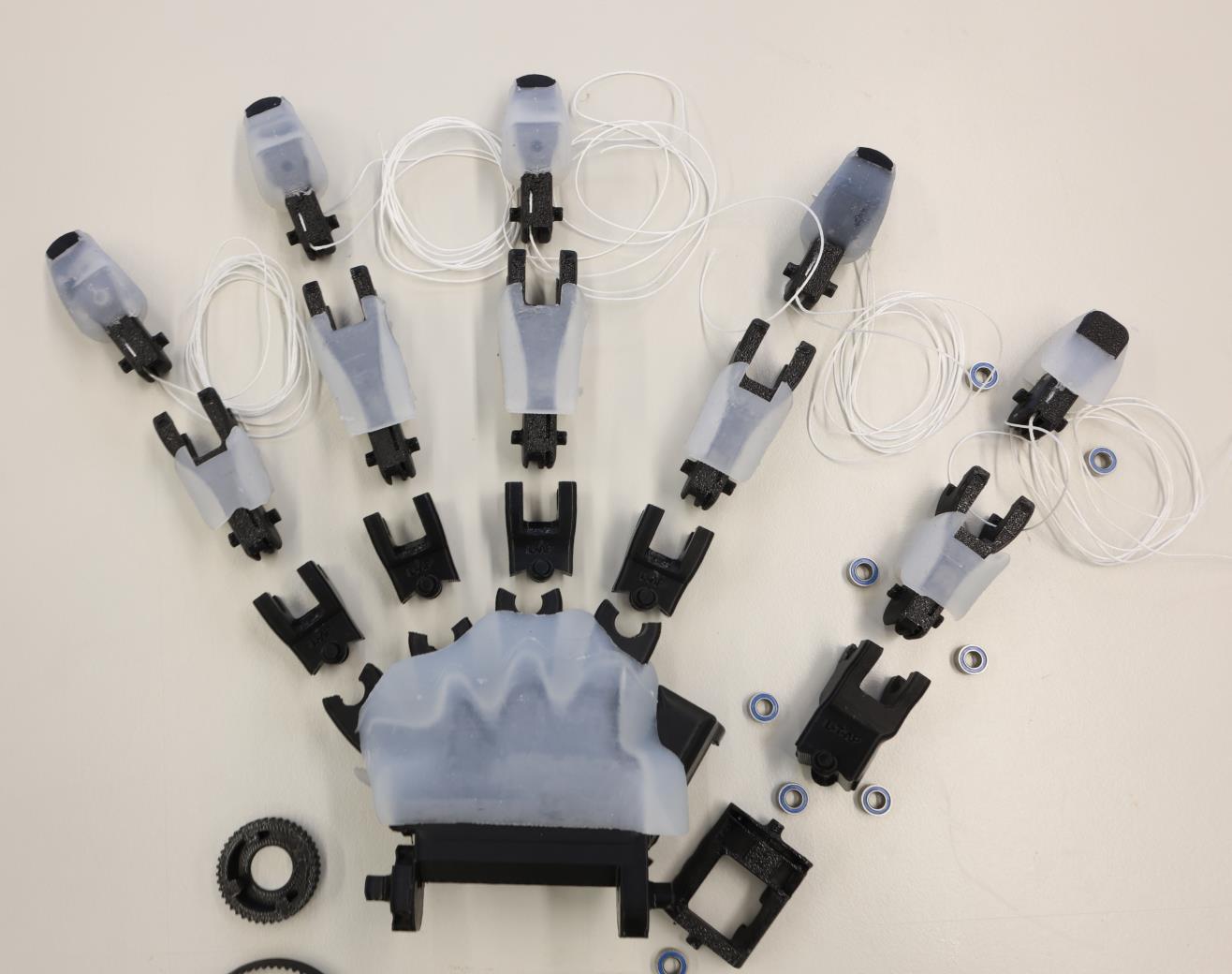

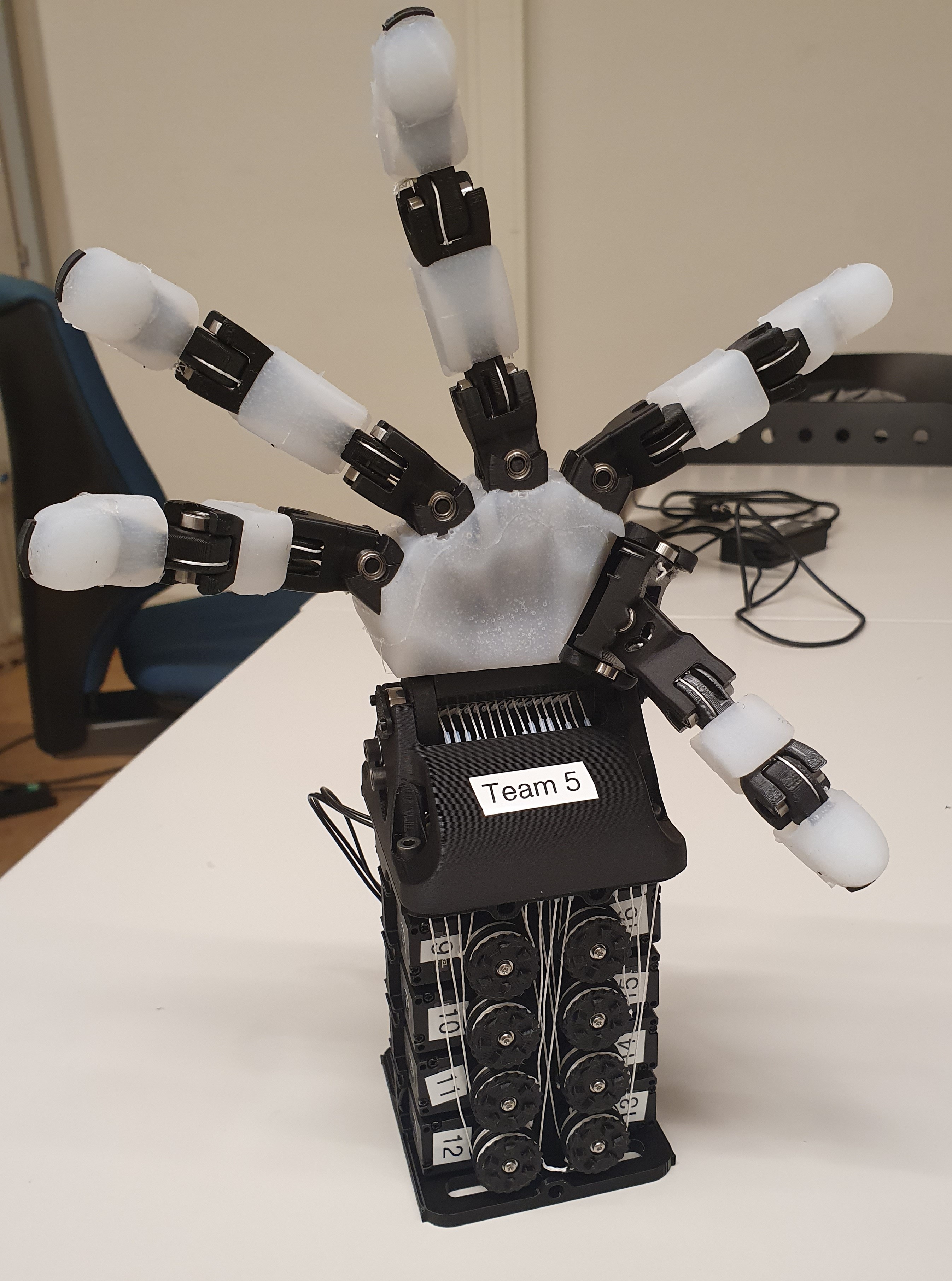

Each team assembled their own ORCA Hand from individual parts, including routing the tendons, wiring the electronics, attaching the silicone skin, and calibrating the actuators.

Reinforcement Learning in Simulation

Sim-to-real transfer

Training a policy to rotate a cube in-hand using reinforcement learning in simulation. This involved reward engineering, domain randomization, and evaluating different policy inputs. Characterizing the ORCA Hand's joint dynamics and applying sim-to-real transfer techniques enabled deployment on the real robot.

Training in simulation. Thousands of hands training simultaneously in Isaac Lab.

Deployment on the ORCA Hand. The trained policy running on real hardware.

Imitation Learning from Demonstrations

Real-world pick-and-place

Pick-and-place task using imitation learning, where cubes have to be placed on their matching color. Demonstrations were collected via teleoperation, covering all cube colors and positions and including failure recovery cases. After evaluating different visual backbones and policy architectures, a Diffusion Policy with a DINO backbone performed best.

Single-color task. Specialized policy trained exclusively on the yellow cube.

Multi-color task. General policy trained to handle all three cube colors.

Learning to Play Jenga

Human-in-the-loop RL

Training a policy entirely in the real world to extract a target block from a Jenga tower using HIL-SERL. The policy learns through exploration and human interventions. As a bonus, SAM 3 was integrated to segment and highlight the target block from a single mouse click, removing the need for a physical marker. A separate imitation learning policy places the extracted block back on top.

Policy deployment. Pushing the marked block out of the Jenga tower using only camera input.

Interactive block targeting. Live segmentation, tracking and recoloring of the policy inputs.
